Mobile Data Terminal

Sorax Android-based Mobile Data Terminals are specially designed for commercial vehicle industries such as taxi, logistics and precision agriculture. Thanks to our strong and experienced R&D team, Sorax MVT has the following advantages:

All-in-one design (shipping, surveillance, navigation, payment, participation, etc.)
High reliability

Protection against vibration
High temperature resistance up to 80 ℃
OBD, fuel sensor, rich interfaces
SDK for software integration
So far, Sorax MVT has been widely used in many countries, including the USA, Mexico, UAE, UK, Germany, Russia, Singapore.

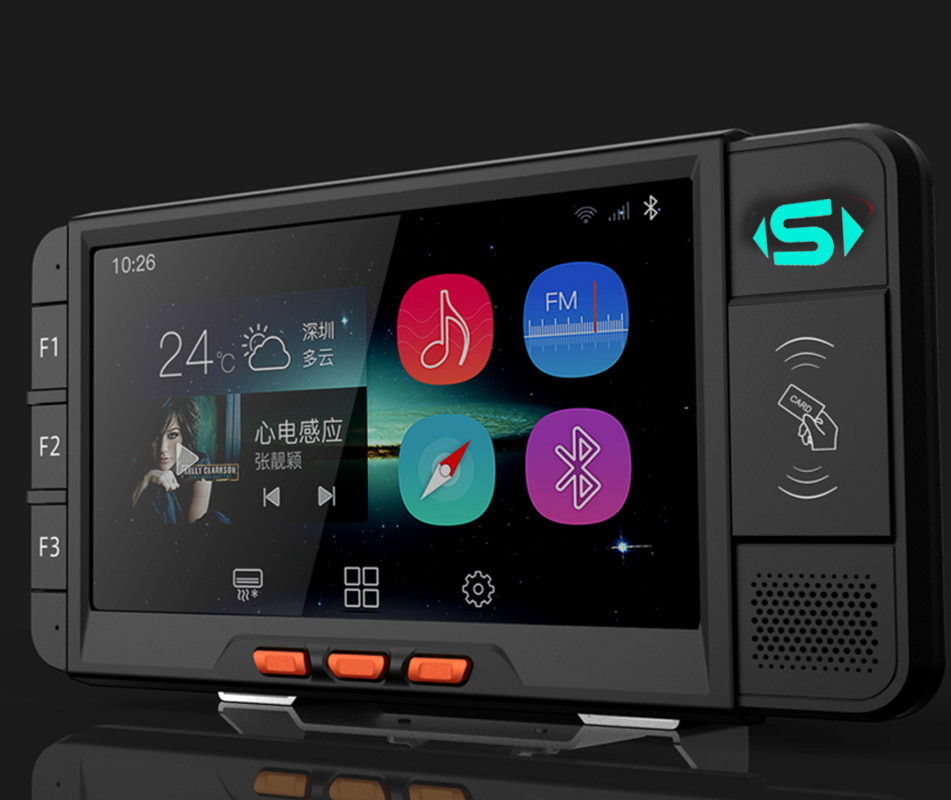

Designed for Commercial Vehicles

Rugged tablet designed for commercial vehicles, resistant to high reliability, hard vibration and high temperature environment.

TECHNICAL PARAMETERS


GPU	Mali-T864 GPU, OpenGL ES1.1 / 2.0 / 3.0 / 3.1, OpenVG1.1, OpenCL, DX11
Data warehouse	DDR3 2 GB
ROM	EMMC 8 GB
Screen size	7 ”screen Capacitive screen
Screen resolution	1024 * 600
Screen lightness	450 cd / m 2
Storage	Supports 1 SD Card, Maximum 128GB
RFID / NFC	Embedded RFID / NFC reader
G sensor	Built-in accelerometer
Hardware buttons	6-light Hardware Button (5 software programmable)
Wireless modules
3G / 4G	3G / LTE module; PCI express mini card;
3G / 4G anten	Internal antenna
GSM sound	Optional
Wireless Internet	Internal, 802.11 b / g / n, 2.4GHz ； Distance 20-30m
Wireless AP mode	Support
Wireless Antenna / Internal antenna Bluetooth	Internal 4.1 BLE
GPS module	Built-in Skylab GPS module
GPS Antenna	External GPS antenna, SMA antenna interface
Interfaces
SIM card slot	1 micro SIM card slot
SD card slot	Standard SD card slot
USB	Micro USB port,
Ethernet port	1 Ethernet port
1 Ethernet port	1 Ethernet port
Speaker	Internal. 8R / 1.5W size, 32mm
Power	2 USB, Type A female; external fingerprint reader, USB keyboard, mouse etc.
USB host	2 USB, Type A female; external fingerprint reader, USB keyboard, mouse etc.
USB host	2 pcs USB, Type A female; for external fingerprint reader, USB keyboard, mouse, etc.
RS232	on MDT: 2 pcs RS232
Alarm input	on MDT: 3 pcs input; on Datahub: 6 pcs inputs
Video input	Support 2 channel AHD cameras/Analog cameras; 4 pin M12 aviation connector; Optional:２USB cameras+2 AHD cameras
Alarm output	on MDT:1 pcs. on Datahub: 2pcs
Power output	12v output, 200mA
RS485	1 pcs，half duplex (on Datahub)
CAN /OBD	Support CANBUS transparent transmission (on Datahub)
Pulse input	1 pcs
Audio input interface	1 pcs
Audio output	1 pcs
Video output	HDMI output
Software
OS	Android 5.1/7.1
TTS voice	TTS support voice broadcast, multi-language
Encoding/decoding	H.264 hard encoding/decoding
SDK	Development SDK and demo code for programming guidance
Audio format	MPEG-3, WMA, etc.
Video format	MPEG-4, AVI, RMVB, etc.
Picture format	JPG, BMP, GIF, etc.
Text format	TXT
Power and other
Power	8-32V wide range power input. Built in capacitors for power protection.
Power consumption	9W
Working temperature	-20℃～ +70℃
Storage temperature	-40℃～ +80℃
Dimensions	23511628mm
Net weight	650g
IP Protection	IP54
