Passenger Counter System
SRX-PCS-21
Product Description:

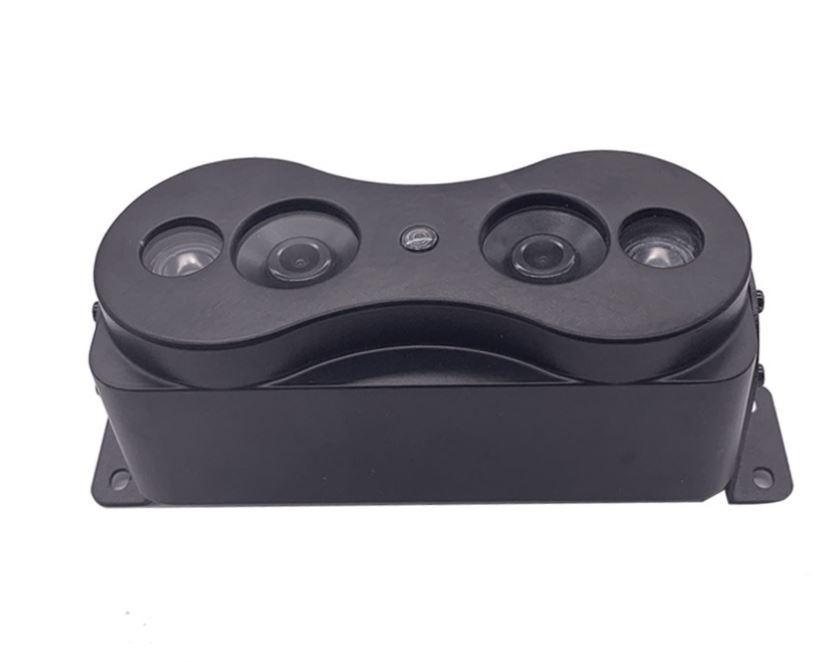

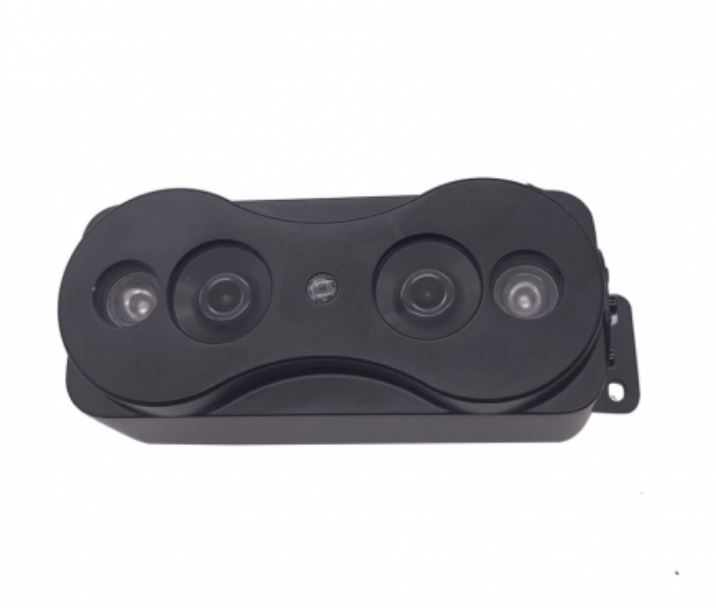

Sorax people counter is a compact embedded product based on non-contact stereo vision technology. The product adopts ARM, DSP dual-core high-speed processor, built-in Linux embedded operating system, and combines H.264 video codec and other technologies.

Sorax people counter has power-off protection technology and vehicle wide voltage design. With powerful function, excellent expandability, strong stability and cost-effectiveness. It can be widely used in mobile vehicle environment with anti-vibration.

The people counter can be applied in various kinds of vehicle such as buses, subways, trains, ships, shopping mall, building passages etc., which require statistical traffic, can be easily installed indoors, roofs, walls, ceilings, etc.
Request an offer
Support More Than 95% Accuracy of Counting The Passengers
Sorax people counter can accurately determines the number of people and their access direction by analysis all the height, image, shape, orientation of the object in the image captured by binocular camera; then the model generate an access log after overlay date and time (or longitude/latitude/speed information). Binocular camera built-in infrared LED lamp can be adapted to any type of lighting condition, even black can work properly. Binocular camera’s built-in infrared LED lighting can adapt to any light environment, and can work properly even if the environment is black.
Support Up to 2 Door Counting At The Same Time

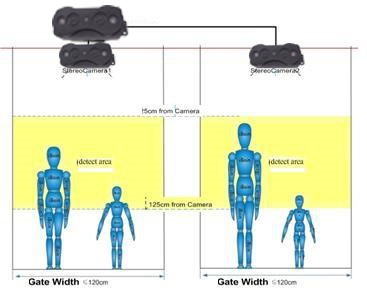

Per counter can connect to one or two stereo cameras to inspect front and rear doors’ channel respectively. Or connect multiple stereoscopic cameras with counters, you can detect 1.2 m-10 m channel. If three or more of the doors of the car, you can have multiple counters and multiple stereo cameras wired up, and transfer the data via serial port.

Aviation connector as video interface
Support ACC ignition
Extendibility with RS485 interface
12V-36V wide voltage, suitable for various kinds of vehicle
High reliability
Easy to install, support 360° installation
Friendly software installation interface.
High temperature resistance, work at -20°- +70°
Integrated with Mobile DVR for Public Bus
The records of the counting people can be real-time transferred via RS485, RS232, TCP/IP or can be download by USB flash disc. Built-in standalone digital I/O ports can be connected to other devices or switch device. If there is Car DVR, you can tag the video when someone passed for later playback retrieval and manual checks. Connections are as follows, such as connecting door switch, you can set when the door is closed, the counter stops counting.
