3D HD 360 Degree Surround View & Bird View System
SRX-3D-360D-72
Request an offer
Features
Sorax 3D HD 360 Degree Surround View & Bird View System presents real 360° bird view to eliminate blind spots and guarantee safe driving! It’s specially designed for heavy-duty vehicles like trucks, buses, engineering machinery and emergency vehicles, and is easy to be installed and adjusted. Together with radar detection system, it can greatly enhance the driving safety.
4CH 720P 190° wide angle fish eye camera (Support Max. 4CH cameras)
Camera angle: horizontal viewing angle >190°, vertical viewing angle >110°
2 x Max. 128GB SD cards for recording
Simplified calibration
4CH 720P / 30fps recording
Image compression: H.264
HD 1080P video output
Wi-Fi
GPS tracking optional
DC power: 8 ~ 32V
Why do you need Sorax® 3D HD 360 Degree Surround View & Bird View System?
Potential dangers hidden among blind areas.
Possibility of scratching in narrow roads while no one shares the cost.
Situation of racketeer for car accident keeps increasing.
Indeterminate responsibility for rear-end collision.

……
Unignorable Vehicle Blind Spots
Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.
It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.

Area A, B, C: Half blind area
Severity of danger depends on the vehicle size.

Area D: Full blind area
Beyond the sight of the driver and 3 rear view mirrors.

Area E: Full blind area
Pillar A near the windshield hinders the vision, which creates the blind spots.
Watch Out for Truck’s Blind Spots!
Due to their size and length, trucks have larger blind spots than the average car, which means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.
Sorax® 3D 360 Degree Surround View & Bird View System Complete Safeguard Your Driving

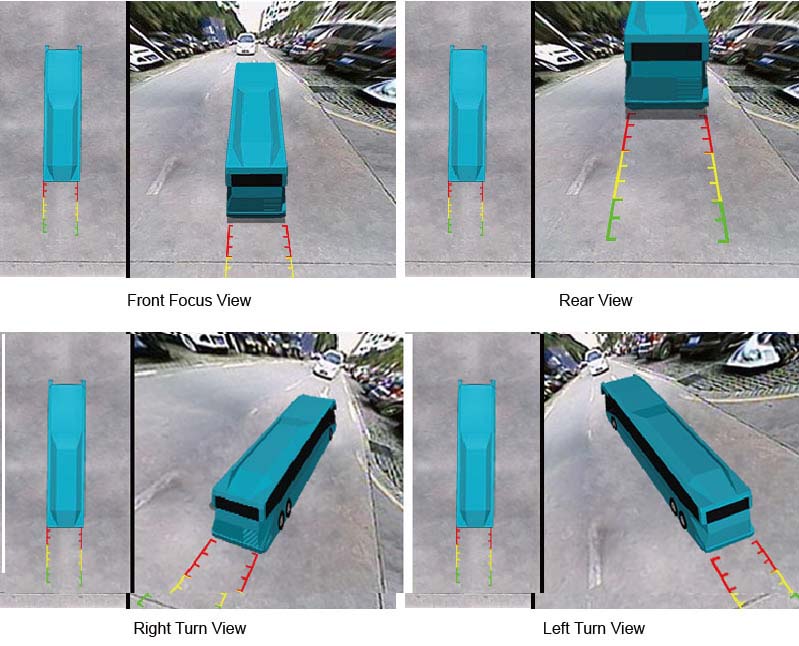

Auto Inspection in 3D View
Every time the vehicle starts, the system will automatically inspect the surroundings in 3D view to guarantee the safety.
Simplified and Fast Calibration
360° Seamless Splicing View
Four 190° super wide HD cameras to fully cover the field of view and eliminate blind spots.
Panoramic Image Synthesis
Panoramic image synthesis: rectify distortion of 4CH 720P FHD image to stitch seamlessly, render real-time 3D scene, display actual driving scenario, and achieve the real bird’s-eye view around your truck.
720P HD Images
Sorax 360° 3D Bird View Parking System can present 720P images from the four camera inputs.
Video Recording Support, 2 × 128GB SD Cards
Support Video Recording, 2×128GB SD Cards
3D Bird View System Integrated with Radar
Automatically remind the driver to avoid potential danger and allow them to take proper actions in advance.
Application
Sorax® 3D 360 Degree Surround View & Bird View System helps a lot in various driving situations, such as reverse parking, eliminating blind spots and turning at narrow road.
Applications
3d HD 360 Degree Surround View & Bird View System can be applied to public transport, for example, it can be used in heavy-duty vehicles such as trucks, buses, engineering machinery and emergency vehicles.

3d HD 360 Degree Surround View & Bird View System applied to buses:
3d HD 360 Degree Surround View & Bird View System applied to trucks:

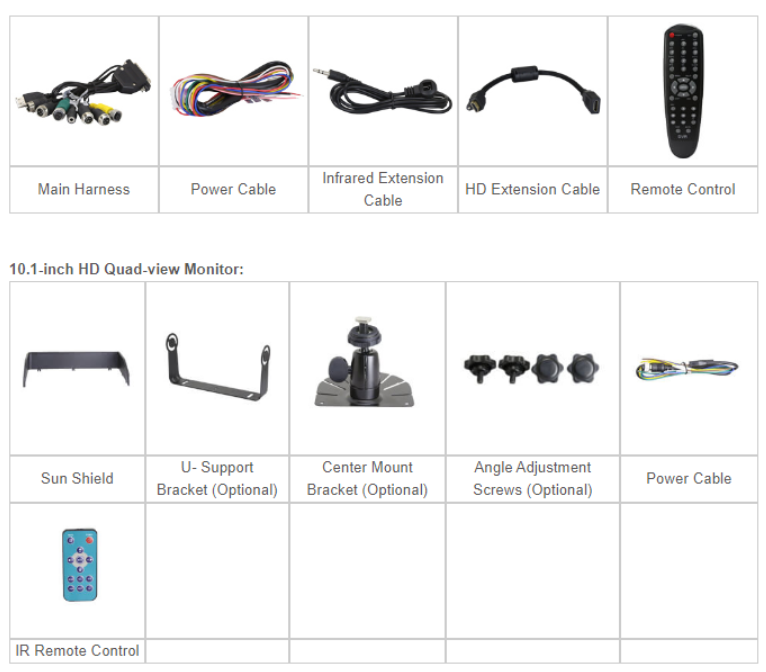

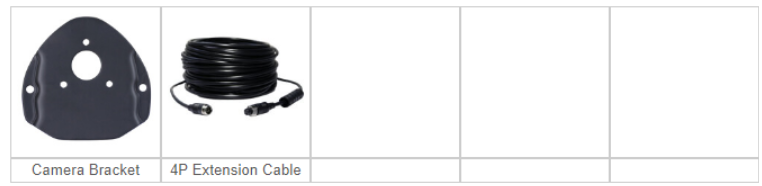

Accessories
Main Control Box:
Side view camera
