trSRX-420-L industrial 3G 4G LTE FDD TDD wireless mobile router with RS232/RS485 for M2M filed

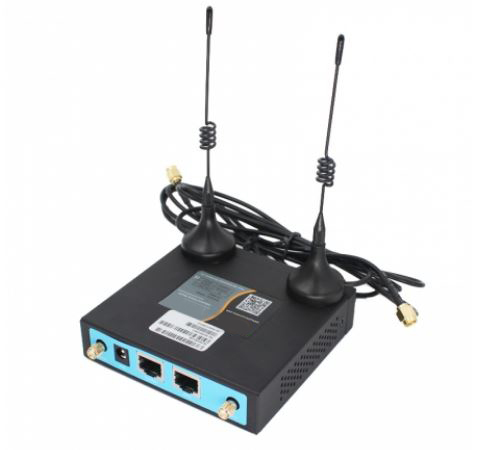

SRX-420
SRX-420 Series Cellular ROUTER is a kind of cellular terminal device that provides data transmission function by public cellular network.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422) and Ethernet port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and Ethernet devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422) and Ethernet port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and Ethernet devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Design for Industrial Application
High-powered industrial cellular module
High-powered industrial 32bits CPU
Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
Housing: iron, providing IP30 protection.
Power range: DC 5~36V
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
Ethernet port: 1.5KV magnetic isolation
RS232/RS485/RS422 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over-voltage protection
Antenna port: lightning protection(optional)
Standard and Convenience
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface（WEB or CLI）
High-performance
Support multiple WAN access methods, including static ip, DHCP，PPPOE，3G/UMTS/4G/LTE，dhcp-4G
Support double link backup between LTE/ WCDMA and WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support local and remote firmware upgrade, import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support VLANs, MAC Address clone, PPPoE
WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge mode.
WIFI support WEP,WPA,WPA2 encryption, Support MAC address filter.
Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support APN/VPDN
Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, traffic statistics, real time link speed statistics etc.
Full protocol support, such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.
Schedule Reboot, Schedule Online and Offline,etc.
Support GPS function (Optional)
High-powered industrial cellular module
High-powered industrial 32bits CPU
Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
Housing: iron, providing IP30 protection.
Power range: DC 5~36V
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
Ethernet port: 1.5KV magnetic isolation
RS232/RS485/RS422 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over-voltage protection
Antenna port: lightning protection(optional)
Standard and Convenience
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface（WEB or CLI）
High-performance
Support multiple WAN access methods, including static ip, DHCP，PPPOE，3G/UMTS/4G/LTE，dhcp-4G
Support double link backup between LTE/ WCDMA and WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support local and remote firmware upgrade, import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support VLANs, MAC Address clone, PPPoE
WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge mode.
WIFI support WEP,WPA,WPA2 encryption, Support MAC address filter.
Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support APN/VPDN
Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, traffic statistics, real time link speed statistics etc.
Full protocol support, such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.
Schedule Reboot, Schedule Online and Offline,etc.
Support GPS function (Optional)
