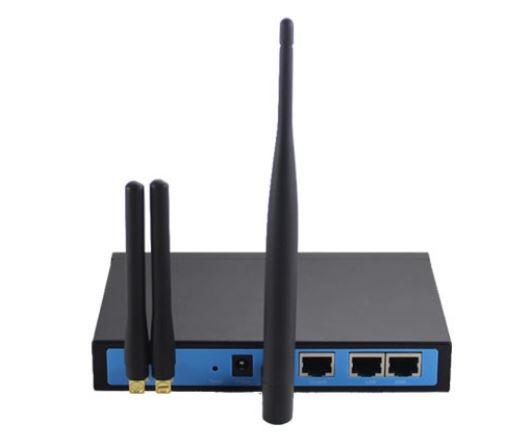

SRX-562 industrial 4G FDD TDD VPN firewall security Ethernet router with sim card slot
SRX-562

SRX-562 Series Cellular WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+/LTE network.

It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

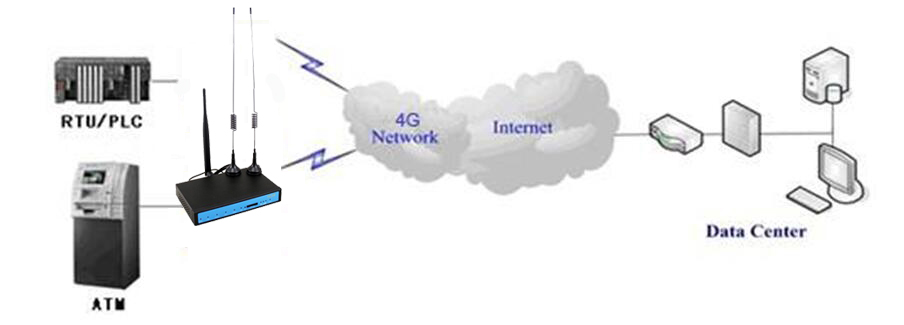

It has been widely used on M2M fields, such as self-service terminal industry, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Request an offer

Design for Industrial Application

High-powered industrial cellular module

High-powered industrial 32bits CPU

Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)

Housing: iron, providing IP30 protection.

Power range: DC 5~36V


Stability and Reliability


Support hardware and software WDT

Support auto recovery mechanism, including online detect, auto redial when offline to make router always online

Ethernet port: 1.5KV magnetic isolation

RS232/RS485/RS422 port: 15KV ESD protection

SIM/UIM port: 15KV ESD protection

Power port: reverse-voltage and over-voltage protection

Antenna port: lightning protection(optional)


Standard and Convenience


Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly

Support standard WAN port and PPPOE protocol that can connect to ADSL directly

Support intellectual mode, enter into communication state automatically when powered

Provide management software for remote management

Support several work modes

Convenient configuration and maintenance interface(WEB or CLI)


High-performance

Support multiple WAN access methods, including static ip, DHCP,PPPOE,3G/UMTS/4G/LTE,dhcp-4G

Support double link backup between LTE/ WCDMA and WAN(PPPOE, ADSL) (optional)

Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)

Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)

Support local and remote firmware upgrade, import and export configure file.

Support NTP, RTC embedded.

Support multiple DDNS provider service.

Support VLANs, MAC Address clone, PPPoE

WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge mode.

WIFI support WEP,WPA,WPA2 encryption, Support MAC address filter.

Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout

Support APN/VPDN

Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, traffic statistics, real time link speed statistics etc.

Full protocol support, such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.

Schedule Reboot, Schedule Online and Offline,etc.

Support GPS function (Optional)
